In an organization for software development, some employees make a decision to move to another department to gain more experience and help in the implementation and improvement processes,
As an end user, I need to track and have a complete picture of the flow between the organization’s departments
Can you help me get this data insight??

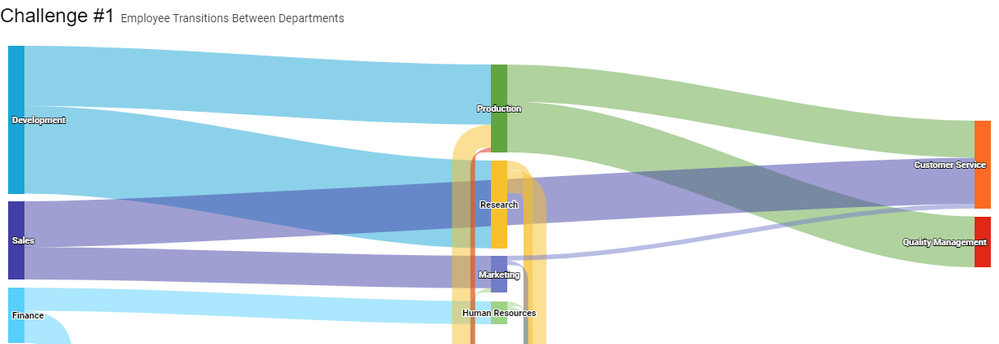

I would like to see a Sankey chart showing the movement of the employees between departments in an organization based on the employees' count I believe it should be something like this:
You can use the below-attached data sets files:
Also, you can check this article as an example for the Sankey chart
Please try it, and attach here the outputs(schema and the dashboard) I Hope you enjoy it 😊.
Solved! Go to Solution.
We can also write SQL queries to generate the transitions in Incorta.
Query for step 2:
With dept_emp_comb as ( SELECT dept_emp.emp_no, dept_emp.dept_no, dept_emp.from_date, dept_emp.to_date, dept.dept_name from sch_CommunityChallenge1.dept_emp as dept_emp inner join sch_CommunityChallenge1.department as dept on dept_emp.dept_no = dept.dept_no ), transitions as ( SELECT table1.dept_name as dept_name, table1.emp_no as emp_no, table2.dept_name as new_dept_name from dept_emp_comb as table1 inner join dept_emp_comb as table2 on table1.emp_no = table2.emp_no and table1.from_date < table2.from_date ) SELECT dept_name, new_dept_name, COUNT(emp_no) as emp_no_count FROM transitions GROUP BY dept_name, new_dept_name ORDER BY dept_name;
